Connection & Linkage Forgings
Forged eye and connection forms produced for drawing-led projects.
Representative component evidence
Drawing-led forgings, not a fixed catalogue
These representative forging families show the component forms Jungong has produced. New projects are reviewed and quoted from the customer's drawing.
REPRESENTATIVE FORGING FAMILIES
Three representative made-to-drawing families.
Wheel, Hub & Sprocket Forgings
Representative wheel blanks, hub forms and sprocket components.

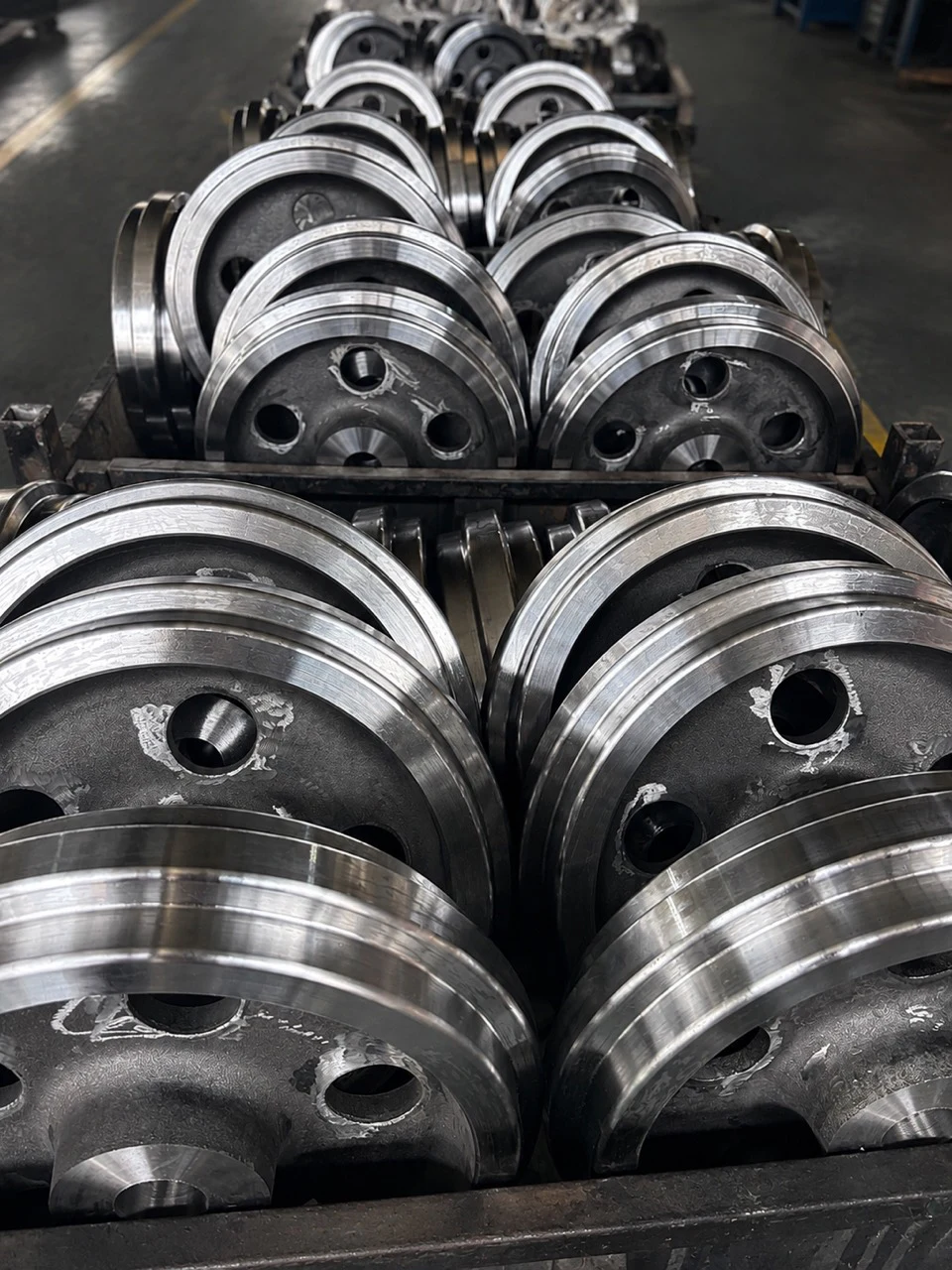

Machined Forged Components
Representative forged components with visible machined functional surfaces.
CATEGORIES AND SUPPLY BASIS
Representative forging categories for drawing-led supply
These categories describe the forms shown in the approved production evidence. They are not fixed catalogue parts or a substitute for drawing review.
Connection and linkage forgings
Forged eye and linkage forms are reviewed from the customer drawing, including the geometry and required functional interfaces.
The required final supply condition, including any agreed machining, is confirmed during quotation and drawing review.
Wheel, hub and pulley forgings
Representative wheel, hub and pulley forms can be reviewed as made-to-drawing forging projects rather than selected from a standard catalogue.
Part weight, geometry, quantity and the requested final supply condition define the manufacturing review basis.
Sprocket and hub forgings
Sprocket and hub forms are assessed against the supplied drawing and the project-specific production basis.
Any machining requirement must be identified with the required final condition before quotation.
Machined forged components
CNC machining can support agreed functional surfaces on forged components when the drawing and quoted supply condition require it.
The machining scope remains part-specific and is confirmed together with inspection and release requirements.
DRAWING REVIEW / RFQ
Your component is reviewed from its own drawing.
Send the current drawing and required final condition to begin review.
